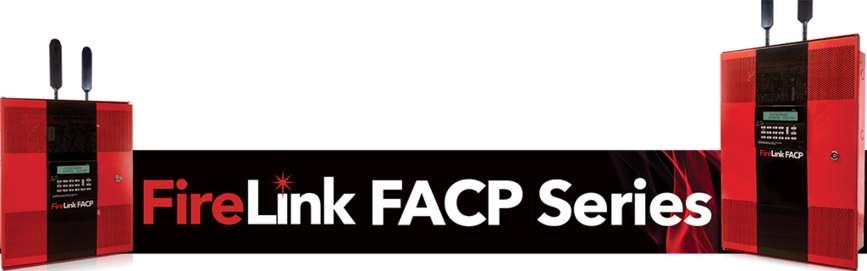

Original FIRELINK FACP 32: Conventional 8 to 32 Zone Fire Alarm Control Panel, 8 conventional fire zones, suitable for 2-wire fire, preloaded program ideal for waterflow supervisory, expandable to 32; 2 programmable NAC circuits, 2A max @ 24V
New FIRELINK XL 255 FACP: Addressable 128 to 255 Point Fire Alarm Control Panel, 128 addressable points fire zones, expandable to 255 w/ one module (GEMC-FWSLC); 4 programmable NAC circuits, 7A max @ 24V (SLC Fire Devices available – Analog smoke detector, analog heat detector, duct detector, pull station, conventional zone module & Short circuit isolator)
Lowest Equipment & Labor Cost Available for Any Full-Featured Cell Reporting Fire Alarm Solution
Two Models: Save Time & Money:
Cellular &/or Cell/IP Communicator, Commercial Fire (StarLink Fire) Onboard:, reports on cyber-protected multibillion-dollar cellular networks, for maximum security & liability protection, code-compliant, replaces 2 POTs lines
Built-in Annunciator: Menu-driven operation with backlit custom alphanumeric display and functionality for Reset, Acknowledge, Silence (with disable). Also Remote Annunciator, matching functionality, #FL-FK1
Patented Signal Boost & Dual Diversity Cellular Antennas for maximum signal acquisition and null avoidance, receiving signals simultaneously on both antennas
Reports to any Central Station, via dial up or IP, without any special equipment.
Integrated sync and smart operation support on each NAC for System Sensor® and Wheelock® Notification Devices
Power Supply, 4A @ 24V
100% Cloud Programmable from any smart device
Original FireLink Locking Medium Enclosure for surface mount or recess mounting (between the studs) 16"x 14.25" x 5.2" (H x W x D) without cover. Houses up to 16Ah @ 24V battery backup capacity
New! FireLink XL 255 Extra-Large Locking Enclosure for surface mount or recess mounting (between the studs) 16"x 25" x 5.2" (H x W x D) without cover. Houses up to 32Ah @ 24V battery backup capacity
36-Month Napco Warranty
UL 864 10th Ed., UL 1635 & NFPA 72 Editions 2016, 2013, 2010, 2007 code, CSFM, NYCFD
